Lubratec® Lift window

Ventilation system for insulated building areas

The Lubratec lift window is the ideal ventilation system for insulated building areas that require a closing function and sufficient light in addition to generous ventilation possibilities. The lift window, consisting of UV-stable, translucent double-webbed panels and a surrounding aluminium frame, can be variably adjusted and is available in two variants. Due to the small space requirement, you are flexible during installation. For the opening technology, you can choose freely between pull rope system and pulleys or a drive tube.

Perimeter aluminium frame ensures high System reliability

UV-stable and translucent

Ventana elevable como sistema de ventilación en el picadero

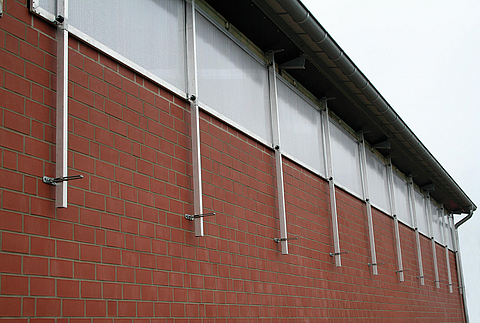

Vista exterior de la ventana elevadora de un picadero cubierto
Ventana elevable como sistema de ventilación en el picadero

Lubratec Lift window

Product benefits

  • UV-stable and translucen
  • Perimeter aluminium frame ensures high system reliability
  • Available in two versions
  • Free choice of drive
  • Flexible installation with low space requirement
  • Including external wind protection
 Lift window with weatherstripeLift window without weatherstripe
Opening directiontop opening
Opening mechanismwith pull rope system and pulleys or drive tub

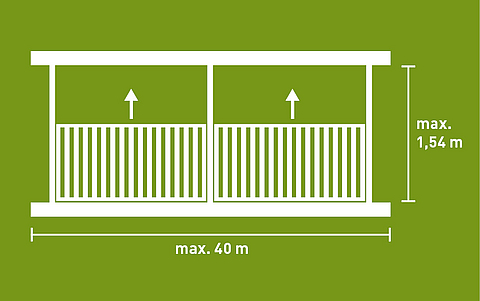

Opening heightup to 1.50 m
Opening lengthup to 40 m
Drivechoice of manual or electric
Special featuresperimeter weatherstripping for insulated building areas with intelligent press down systemsimple system running along external wind protection tubes



Further information
can be found here
