Lubratec^® Roller blind front

Textile roller blind fronts facilitate the management of your barns, machinery and storage halls. They are ideal for wide passages and door openings, protect against external influences and can be used in many different ways. Lubratec roller shutter fronts stand for high system security and stability due to the middle groove tube. All systems are suitable for closing large openings and offer a high degree of individualisation through the choice of different drive options and textiles.

For extra wide openings

High wind load capacity thanks to central grooved tuber

Product variants

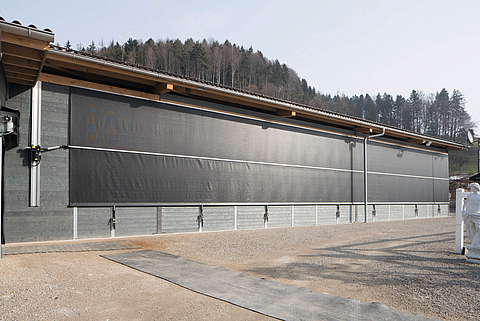

ROLLER BLIND FRONT WITH TRAVELLING DRIVE

Frente enrollable Lubratec como opción de apertura con poca necesidad de espacio lateral del almacén

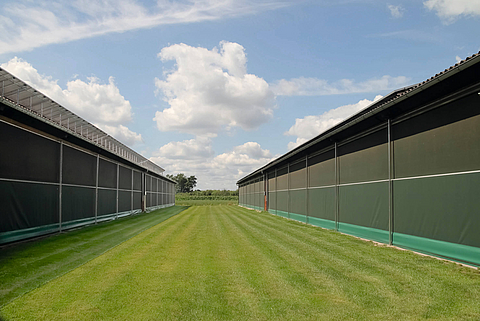

ROLLER BLIND FRONT WITH FIXED DRIVE

Lubratec Rollofront para proteger los puestos de las influencias externas

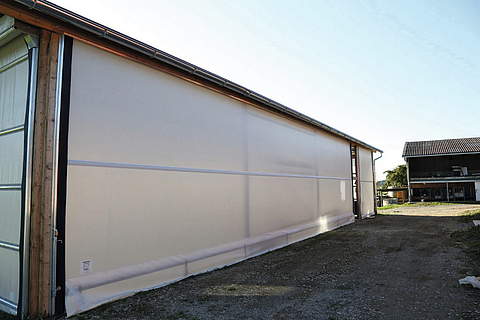

ROLLER BLIND FRONT WITH TUBULAR MOTOR

Lubratec Rollofront con motor tubular instalado como protección contra el viento y la intemperie del granero

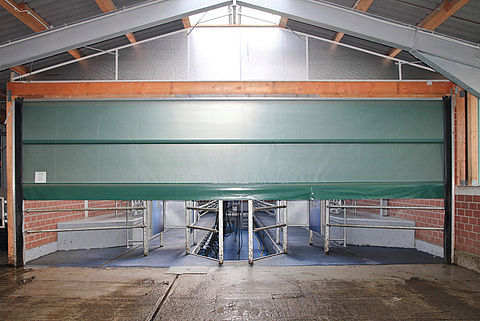

ROLLER BLIND FRONT WITH TUBULAR MOTOR FOR INDOORS

Frontal enrollable de Lubratec con motor tubular para uso interior como paso al vestíbulo

Lubratec Roller Blind Front with travelling drive

Product benefits

For extra wide openings, with low space requirement at sides
High wind load capacity thanks to central grooved tube
High system reliability – hanging tensioned at bottom by ratchets
Additional ventilation effect possible with wind protection meshes

Frente de persiana Lubratec con accionamiento móvil y dimensiones máximas marcadas - Protección eficaz para aperturas especialmente largas

	With travelling drive
Opening direction	Hanging winds onto central 50 mm aluminium grooved tube
Opening height	Max. 5 m
Opening width	Max. 50 m
Drive	Manual or electric (mini-telescope, vertical guide rail)
Space requirement for drive	1.05 m

Lubratec Roller Blind Front with fixed drive

Product benefits

For extra wide openings
High wind load capacity thanks to central grooved tube
Additional ventilation effect possible with wind protection meshes
High system reliability – hanging tensioned at bottom by ratchets

Frente de persiana enrollable Lubratec con accionamiento fijo y dimensiones máximas marcadas - Alta absorción de la carga del viento para aperturas amplias

	Fixed drive
Opening direction	Hanging winds onto central 50 mm aluminium grooved tube
Opening height	Max. 5 m
Opening width	Max. 50 m
Drive	Manual or electric (with long telescope)
Space requirement for drive	2.05 m

Lubratec Roller Blind Front with tubular motor

Product benefits

For up to 15 m wide openings with low space requirement at sides
Incorporated lip seals to prevent draughts from air infiltration at sides
High wind load capacity thanks to central grooved tube
Extra high system reliability – hanging tensioned at bottom by ratchets
Additional ventilation effect possible with wind protection meshes
With storm protection

Frontal de persiana Lubratec con motor tubular y dimensiones máximas marcadas - Solución estable para aperturas de hasta 15 m con poca necesidad de espacio

	With tubular motor
Opening direction	Hanging winds onto central 78 mm steel grooved tube
Opening height	Max. 5 m
Opening width	Max. 15 m
Drive	230 V tubular motor
Space requirement for drive	No significant space requirement as drive located in winding shaft

Lubratec Roller Blind Front with tubular motor for indoors

Product benefits

For up to 15 m wide openings with low space requirement at sides
Lateral guide rails and lip seals
High stability thanks to central grooved tube

Frente de persiana Lubratec con motor tubular para interiores y dimensiones máximas marcadas - Gran estabilidad y seguridad

	With tubular Motor for indoors
Opening direction	Hanging winds onto central 78 mm steel grooved tube
Opening height	Max. 5 m
Opening width	Max. 15 m
Drive	230 V tubular motor
Space requirement for drive	No significant space requirement as drive located in winding shaft
